Ball valve

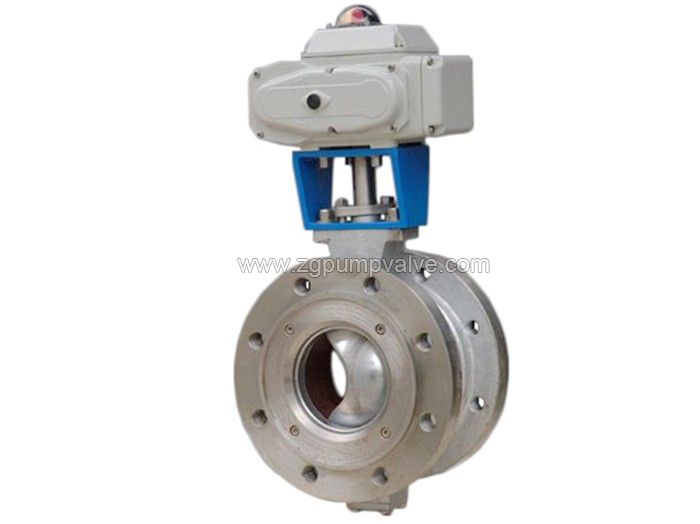

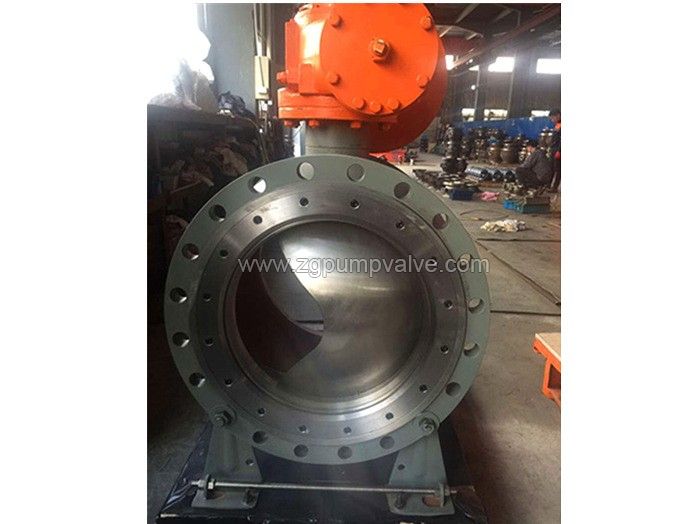

V type ball valve
Product name: Forged steel fully welded ball valve
DN: 1/2”(15)~ 32”(800)
CLASS(PN): 150LB(16)~600LB(2500)
Available materials: cast iron, stainless steel SS304, SS316, SS316L, 904L, duplex stainless steel CD4MCu, 2205, 2507, Alloy 20, Hastelloy, Titanium, Monel, Nickel...
-
Parameters
-
Features
-

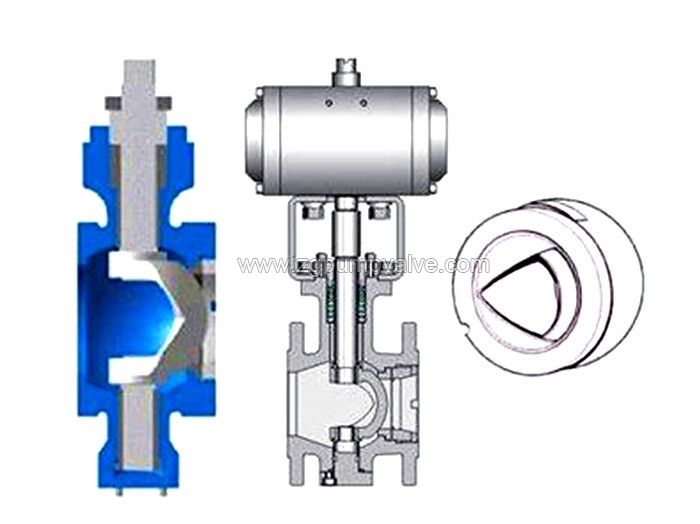

Structure
-
MOC
-
Configuration
-
Application
-
Performance
None
Body structure: | Bolted body, forged or cast steel |
Valve seat: | Self-relieving / soft seat or hard seat |
Ball: | Trunnion mounted ,solid |
Flow pass: | Full bore / reduced diameter (optional) |
Valve stem: | Anti-blowout, can be lengthened (optional) |
Operation mode: | Manual / electric / pneumatic / pneumatic-hydraulic linkage / electro-hydraulic linkage / hydraulic (optional) |
Seal: | Soft seal / metal seal / composite seal (primary metal seal + secondary soft seal) |
Grease injection valve: | Optional |
Vent valve: | Optional |
Sewage valve: | Optional |
Locking device: | Optional |
Leak rating: | Soft seal: ISO 5208 Class A, metal seal: ISO 5208 Class C or higher, ANSI VI |
None
Material of main parts | |
Valve body | Carbon steel / stainless steel / alloy steel forgings |
Ball | Carbon steel / stainless steel / alloy steel forging nickel / chrome / spray welding hard alloy |
Support ring | Carbon steel / stainless steel / alloy steel forging nickel / chrome / spray welding hard alloy |
Valve seat | PTFE, RPTFE, VITON, NYLON, DEVLON, MOLON, PEEK/Seal face spray welding, tungsten carbide |
Valve stem | Stainless steel / alloy steel / INCONEL, etc. |
Packing | PTFE, graphite , etc. |
Bolts and nuts | A193/A194, A320, etc. |
None
Pressure temperature class: | ASME B16.34 |
Design: | BS 5351, API 608, ASME B16.34, API 6D, GB, GOST, DIN, BS |
Test: | API 6D / API 598 / GB/T 13927 and other relevantNational standards. |
Structure length: | API 6D, ANSI B16.10, GB 12221, GOST, DIN, BS/ manufacture standard / user requirements. |
Connection end: | BW (ASME B16.25, ASME B31.8 and other national standards), RF (ASME B16.5, ASME B16.47, JB / HG / GOST, DIN, etc.), RTJ (ASME B16.5, ASME B16.47 , JB / HG / GOST, DIN, etc.), BW + PUP (the length of the transition tube is customized) |
Fire protection requirements: | API 607/API 6FA/BS 6755 |
Anti-static electricity: | API 608/BS 5351 |
Valve anti-sulfur: | NACE MR. 0175 |
Can achieve equal percentage adjustment, large capacity, can be used for crystallization medium.
