Metering Pump

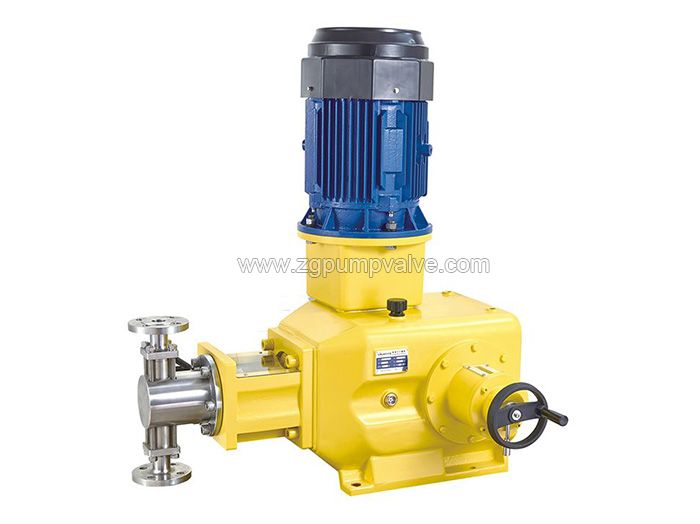

Plunger metering pump
The DZX series of plunger diaphragm metering pumps directly inhale or discharge the working medium through the reciprocating motion of the plunger. Since the plunger and the seal are in direct contact with the medium, the choice of the combined plunger material and sealing form ensures better performance of the pump during operation. There are various materials for our plunger diaphragm metering pumps, including stainless steel SS304, SS316, SS316L, 904L, duplex stainless steel CD4MCu, 2205, 2507, Alloy 20, Hastelloy, Titanium, Monel, Nickel...
-
Parameters
-
Features
-
Structure
-
MOC
-
Configuration
-
Application
-
Performance
■Flow rate: 0~400lph
■Discharge pressure: 0~250 Bar
■Suction pressure: Max. 2 bar
■Working Temperature: -30℃~90℃
■ No leakage, maintained conveniently, low noise, durable in use.
■ Measuring precision is better than mechanical diaphragm pump, sealing property is better than piston pump.
■ Matching a stroke adjuster to realize remote automatic controlling.
■ The diaghragm is made from multilayer complex structure to promote the life span, the first layer is Teflon anti-acid diaphragm, the second is EPDM stretch rubber, the third is 3.00 mm thick SUS304 that supporting the iron corn. The fourth is also the EPDM stretch rubber to cover all of the body.
■Pump head: SUS304, SUS316, PVC, PTFE
■Diaphragm: PTFE
■Valve: SUS304, SUS316, PVC, PTEF
■Valve ball: ZrO2, SiO, SUS304, SUS316, Ceramic
■Material of wetted parts can be PVC, PVDF, PTFE, HC and all kinds of stainless steel.
This product is widely used in petroleum, chemical, metallurgy, mining, shipbuilding, light industry, power, printing and dyeing, environmental protection, water treatment, food and beverage industry, military, etc.
■Mix 4 items (resin, pigment, accelerator) in plastic film production
■Measure a thick bromin-based catalyst in the production of margarine
■Hot residue from vacuum distillation (200℃, solid)
■Add glucose syrup to the confectionery industry
■Add glucose syrup to the confectionery industry
■Measurement of liquid wax (150℃,200pa)
