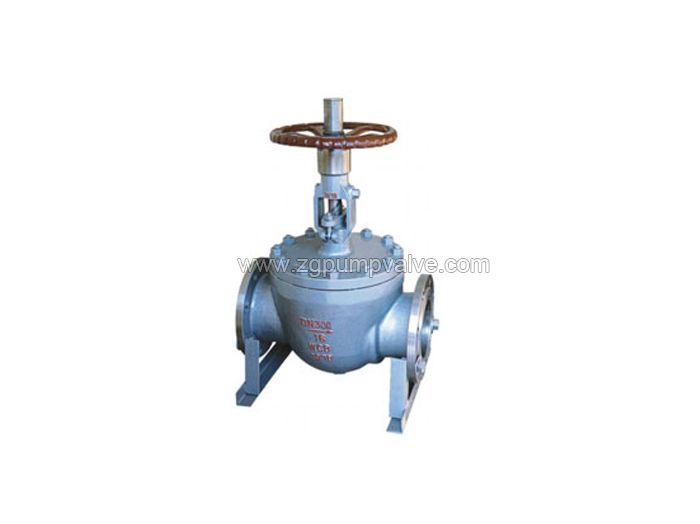

Product name: Orbit valve
DN: 2”(15)~ 24”(600)
CLASS(PN): 150LB(16)~2500LB(420)
Available materials: cast iron, stainless steel SS304, SS316, SS316L, 904L, duplex stainless steel CD4MCu, 2205, 2507, Alloy 20, Hastelloy, Titanium, Monel, Nickel...
-
Parameters
-
Features
-
Structure
-
MOC
-
Configuration
-
Application
-
Performance
Body structure: | Bolted bonnet |
Valve seat: | Soft or hard seal, single valve seat, downstream seal. |
Ball: | Trunnion mounted ,solid |
Flow pass: | Full bore / conventional (optional) |
Stem and bonnet: | Rising pole bracket structure,anti-blowout,Lengthened (optional) |
Operation mode: | Manual / electric / pneumatic / pneumatic-hydraulic linkage / electro-hydraulic linkage / hydraulic (optional) |
Seal: | Soft seal / metal seal / composite seal (primary metal seal + secondary soft seal) |
Grease valve: | Optional |
Discharge valve: | Not applicable |
Sewage valve: | Not applicable |
Locking device: | Optional |
Leak rating: | Soft seal: ISO 5208 Class A, metal seal: ISO 5208 Class C or higher, ANSI VI |
Material of main parts | |
Valve body | Carbon steel / stainless steel / alloy steel forgings |
Ball | Carbon steel / stainless steel / alloy steel forging nickel / chrome / spray welding hard alloy |
Support ring | Carbon steel / stainless steel / alloy steel forging nickel / chrome / spray welding hard alloy |
Valve seat | PTFE, RPTFE, VITON, NYLON, DEVLON, MOLON, PEEK/Seal face spray welding, tungsten carbide |
Valve stem | Stainless steel / alloy steel / INCONEL, etc. |
Packing | PTFE,graphite,etc. |
Bolts and nuts | A193/A194, A320, etc. |
Pressure temperature class: | ASME B16.34 |
Design: | BS 5351, API 608, ASME B16.34, API 6D, GB, GOST, DIN, BS |
Test: | API 6D / API 598 / GB/T 13927 and other relevantNational standards. |
Structure length: | API 6D, ANSI B16.10, GB 12221, GOST, DIN, BS/ manufacture standard / user requirements. |
Connection end: | BW (ASME B16.25, ASME B31.8 / GB / T12224 andother national standards), RF (ASME B16.5, ASMEB16.47, GB / JB / HG / GOST, DIN, etc.), RTJ (ASME B16. 5, ASME B16.47, GB / JB / HG / GOST, DIN,etc.), BW + PUP (the length of the transition tube is customized) |
Fire protection requirements: | API 607/API 6FA/BS 6755 |
Anti-static electricity: | API 608/BS 5351 |
Valve anti-sulfur: | NACE MR. 0175 |
Strengthen the seal and improve the reliability of the seal.Self-cleaning structure of the sealing surface. When the sphere is tilted away from the valve seat, the fluid in the pipeline will pass through the sealing surface of the sphere uniformly at 360 °. It not only eliminates the high-speed fluid from locally scouring the valve seat, but also removes the accumulation on the sealing surface to achieve the purpose of self-cleaning.
