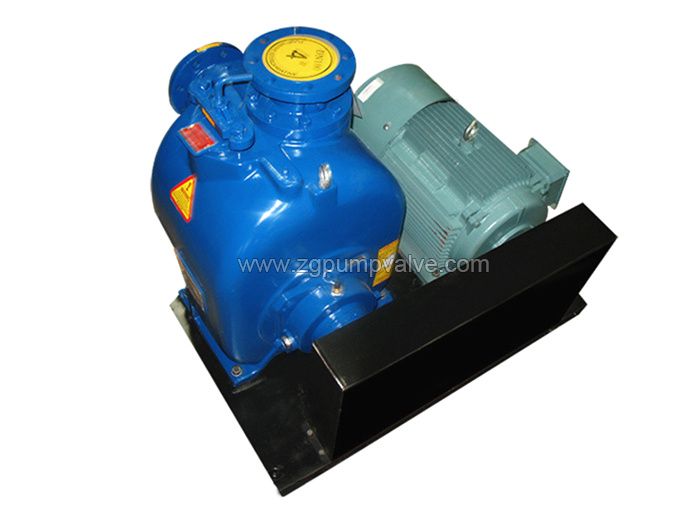

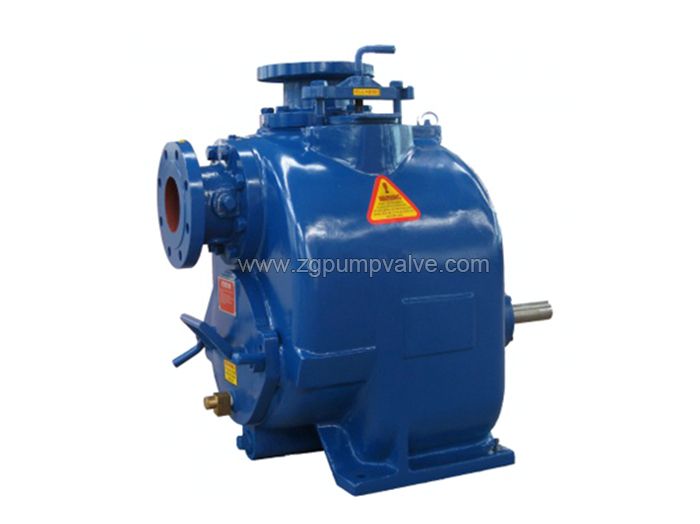

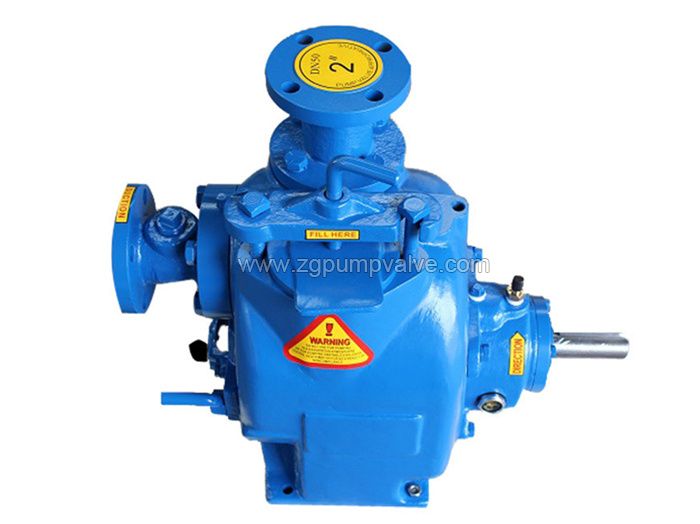

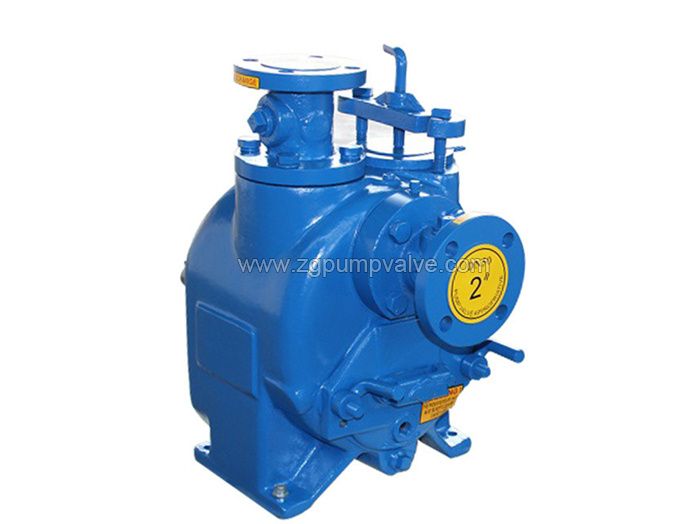

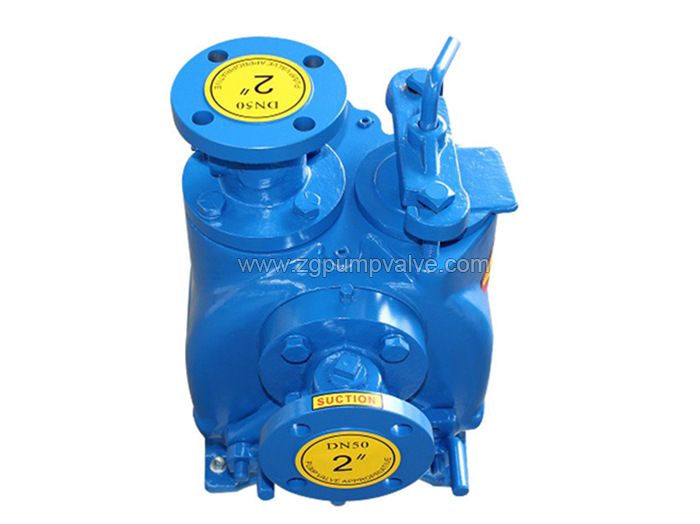

Non-clogging self-priming sewage pump

■Flow rate: Q=4~1500m3/h

■Total head: H=5~50m

■Self-priming depth: H=7m

■Speed: n=980rpm/2950rpm

■S.g.: γ ≤1.3

■Temperature: T=-0～80℃

■Beautiful appearance, compact structure and reliable performance

■With strong capacity of self priming, on need to equip with flap valve

■non-clog, no entanglement, and strong debris flow capability

■The unique oil-lubricated mechanical seal cavity structure, reliable seal use

■The design of the detachable sewage hole structure, so that debris can be removed in time when it is blocked

■Special flapping structure, the liquid is discharged in time when the pump is started for the second time

■Gas and liquid can be mixed and transported, and the pump can run dry in a short time

■Low speed, stable operation, long service life and easy maintenance

■Advanced pressure protection device to ensure safe operation

■T self-priming sewage centrifugal pump has anti-blocking, no entanglement, and strong debris flow capacity. In order to avoid towels, clogging of long fiber dirt in the weaving bag caused poor drainage of the sewage pump, a detachable drain hole structure was designed at the front of the pump to ensure rapid removal of strong debris when clogged

1.Municipal engineering, waste water treatment, constructional engineering

2. Sewage collection or discharge in residential community

3. Sewage discharge in hospital and hotel

4. Centralized and staged disposal in sewage treatment plant

5. Water drainage station

6. Seriously polluted water discharge

7. Agricultural irrigation etc.
